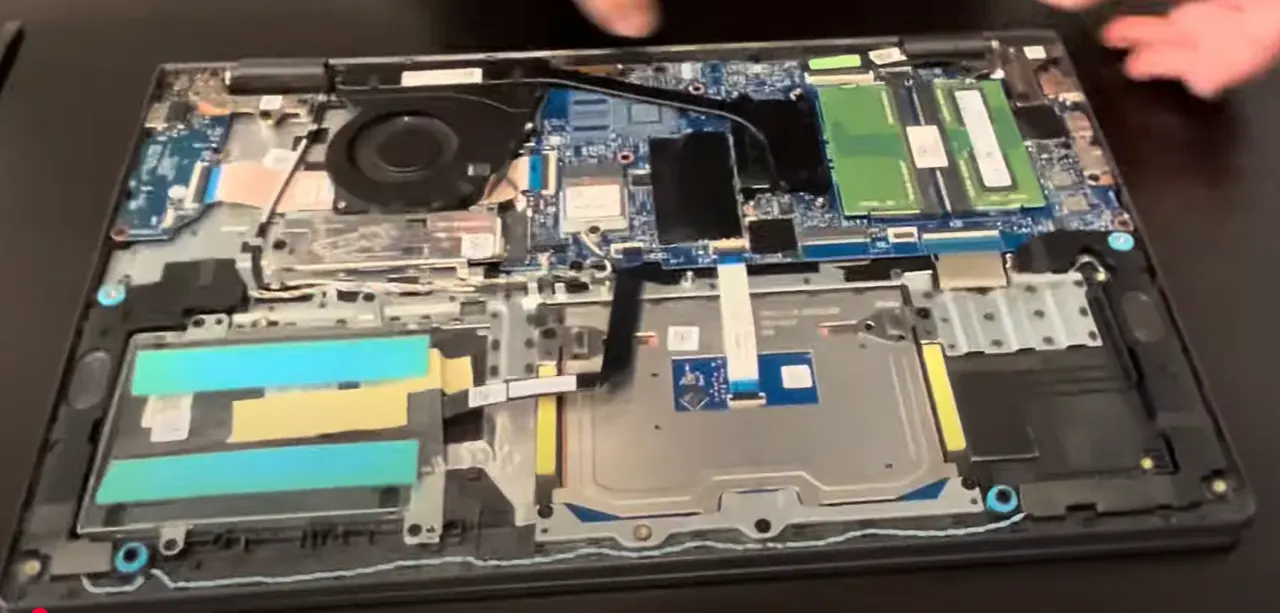

Dell Inspiron 15 3525 Laptop - Complete DIY Disassembly & Upgrade Guide: RAM, SSD, Battery, LCD & Motherboard Replacement
Jul 04, 2025
1. Dell Inspiron 15 3525 Pre-Disassembly: Maximize Your Part-Out Profit
1. Component Valuation Guide (Q3 2024)
| Part | Condition | Price Range | Ryzen Premium |
|---|---|---|---|
| 8GB DDR4 RAM | Working, tested | $15-$25 | +10% |
| 256GB NVMe SSD | Health >85% | $25-$45 | +15% |
| 41Wh Battery | <300 cycles | $40-$70 | +20% |
2. Essential Documentation
- Performance Records:
- Run Dell ePSA diagnostics
- Capture AMD Ryzen specs (F2 at boot)
- Visual Evidence:
- Photograph Service Tag (bottom cover)
- Record part numbers (e.g., 0WVH3V)
3. Required Tools
- Basic:
- Phillips #1 screwdriver (iFixit kit)
- Plastic spudger (1.0mm)
- Specialty:
- ESD-safe workspace
- Thermal paste (for CPU inspection)
4. Safety Precautions
- Disconnect charger and power down
- Hold power button 10 seconds to discharge
- Ground yourself before handling components
5. Pre-Sale Optimization
- For Individual Buyers:
- Clean components with 90% isopropyl
- Test all ports with USB devices
- For Refurbishers:
- Document remaining warranty
- Note BIOS admin status
2. Dell Inspiron 15 3525 Bottom Cover Removal: Safe Access for Upgrades
1. Screw Removal Process
- Locate All Fasteners:
- 10 captive Phillips screws (marked with keyboard icons)
- Use magnetic mat to prevent loss
- Proper Technique:
- Apply firm downward pressure (0.5 Nm torque)
- Inspiron-specific: Screws remain in cover when loosened
2. Cover Release Points
| Area | Release Method | Tool |
|---|---|---|
| Front Edge | Start near touchpad corners | Plastic spudger |
| Rear Edge | Lift upward at 15° angle | iFixit opening picks |
3. Preserving Resale Value
- No-Scratch Technique:
- Use only plastic tools (metal voids warranty)
- Damaged clips reduce value by 20-30%
- Reassembly Prep:
- Note screw positions (different lengths)
- Check rubber foot alignment
4. Common Inspiron-Specific Issues
| Problem | Solution | Resale Impact |
|---|---|---|
| Stuck clips | Guitar pick method | None if done properly |
| Stripped screw | Rubber band grip trick | 5-10% value loss |
5. Model-Specific Notes
- 3525 has stronger clips than 3511 model
- No hidden screws under rubber feet
- Ventilation grilles are fragile - handle carefully
0:21 Bottom Case 1:34 Battery 2:12 Memory RAM 2:28 WiFi Card 2:51 SSD Storage 3:13 Heatsink 3:38 Cooling Fan 4:10 Unscrew Motherboard Screws 4:52 Hinges 5:52 IO USB Board 6:07 Motherboard 6:25 DC Power Jack 6:40 Speakers 7:01 HDD Caddy 7:39 Palmrest Assembly 7:43 Touchpoad 7:47 Keyboard 8:05 LCD Front Bezel 9:01 LCD Screen 11:15 Video Cable and WebCam 11:55 Back Cover
3. Dell Inspiron 15 3525 RAM Upgrade: Boost Performance & Resale Value
1. RAM Specifications
| Slots | Type | Max Capacity | Speed | Part Number |
|---|---|---|---|---|
| 2x SODIMM | DDR4 | 32GB (16GBx2) | 3200MHz | 0WVH3V |
2. RAM Replacement Process
- Access Slots:
- Remove bottom cover (see Section 2)
- Locate RAM slots near cooling fan
- Installation:
- Release side clips simultaneously
- Insert at 30° angle (gold contacts first)
- Press down until audible click
3. Current Resale Values (Q3 2024)
| Capacity | Used OEM | New Retail | Matched Pair Bonus |
|---|---|---|---|
| 4GB DDR4 | $10-$18 | $25-$40 | +0% |
| 8GB DDR4 | $18-$30 | $40-$65 | +15% |
| 16GB DDR4 | $35-$55 | $70-$110 | +25% |
4. Pre-Sale Testing
- Diagnostics:
- Run MemTest86 for 2+ passes
- Check in Windows Task Manager
- Documentation:
- Photograph Dell part numbers
- Include CPU-Z screenshots
5. Maximizing Resale Value
- For Individual Buyers:
- Clean contacts with isopropyl alcohol
- Include original capacity stickers
- For Refurbishers:
- Keep matched pairs together
- Provide Dell service tag compatibility
4. Dell Inspiron 15 3525 SSD Upgrade: Faster Storage & Smart Resale
1. SSD Specifications
| Slot Type | Form Factor | Interface | Max Capacity | Part Number |
|---|---|---|---|---|
| Primary | M.2 2280 | PCIe Gen3 x4 NVMe | 2TB | 0WVH3V |
2. SSD Replacement Process
- Locate SSD Bay:
- Remove single M2x3 screw (marked with SSD icon)
- Note thermal pad orientation (if present)
- Install New SSD:
- Insert at 30° angle (gold contacts first)
- Apply 0.6 Nm torque to retention screw
- Reattach any thermal shielding
3. Current Resale Values (Q3 2024)
| Capacity | Used OEM | New Retail | Inspiron Premium |
|---|---|---|---|
| 256GB NVMe | $20-$35 | $45-$70 | +10% |
| 512GB NVMe | $35-$60 | $75-$120 | +15% |
| 1TB NVMe | $60-$100 | $130-$190 | +20% |
4. Pre-Sale Data Sanitization
- Secure Erase:
- Use Dell ePSA Storage Wipe
- Or boot to DBAN for advanced wiping
- Health Verification:
- Check with CrystalDiskInfo
- Document TBW under 70% of rating
5. Maximizing SSD Value
- For Individual Buyers:
- Include original Dell mounting hardware
- Show power-on hours under 10,000
- For Refurbishers:
- Provide certificate of data destruction
- Note service tag compatibility
5. Dell Inspiron 15 3525 Battery Removal: Safe Extraction & Resale Guide
1. Battery Specifications
| Type | Capacity | Voltage | Part Number | Cycle Life |
|---|---|---|---|---|
| Li-ion | 41Wh | 11.4V | 0WVH3V | 500 cycles |
2. Safe Removal Process
- Power Down:
- Shut down completely
- Hold power button for 15 seconds
- Disconnect Battery:
- Locate 3-pin connector (center-left)
- Use plastic spudger to release latch
- Remove Battery:
- Unscrew 4x Phillips #00 screws
- Lift from bottom edge at 25° angle
3. Current Resale Values (Q3 2024)
| Condition | 41Wh Battery | With Documentation |
|---|---|---|
| New OEM | $60-$90 | +25% |
| <200 cycles | $40-$65 | +15% |
| <400 cycles | $25-$45 | +5% |
4. Battery Health Documentation
- Generate Reports:
- Run
powercfg /batteryreportin Command Prompt - Capture Dell ePSA battery test
- Run
- Key Metrics:
- Cycle count under 300
- Design capacity above 80%
- No swelling or damage
5. Safe Shipping & Compliance
- Preparation:
- Discharge to 30-50% capacity
- Protect terminals with non-conductive tape
- Regulations:
- Include UN3481 lithium battery labels
- Follow FAA packaging guidelines
6. Maximizing Resale Value
- For Individual Buyers:
- Include original capacity sticker
- Show charge cycles in listing
- For Refurbishers:
- Provide Dell service tag compatibility
- Include warranty remaining documentation
6. Dell Inspiron 15 3525 LCD Replacement: Display Options & Resale Strategy
2. Safe Screen Replacement
- Bezel Removal:
- Use plastic pry tool starting at bottom edge
- Release 6 clips (3 top, 3 bottom)
- Note adhesive strip locations
- Display Disconnection:
- Release 30-pin eDP connector latch
- Remove webcam cable (if present)
- New Panel Installation:
- Align with mounting holes (4x M2.5 screws)
- Torque to 0.4 Nm (Dell specification)
3. Current Resale Values (Q3 2024)
| Panel Type | Used/Tested | New OEM | Inspiron Premium |
|---|---|---|---|
| FHD IPS | $50-$90 | $120-$180 | +15% |
| FHD Anti-Glare | $70-$110 | $150-$220 | +20% |
4. Selling Your Old Screen
- Condition Documentation:
- Photograph with Dell ePSA display test
- Note dead pixels (under 3 is Grade A)
- Show backlight uniformity
- Packaging:
- Use original protective foam
- Double-box with 2" padding
5. Common Issues & Solutions
| Problem | Solution | Resale Impact |
|---|---|---|
| Minor backlight bleed | Market as "B-Stock" | 20% reduction |
| 1-2 dead pixels | Disclose clearly | 10-15% reduction |
6. Inspiron-Specific Notes
- No touchscreen option for 3525 model
- Bezel adhesive is reusable 2-3 times
- Webcam cable is fragile - handle carefully
7. Dell Inspiron 15 3525 Motherboard Resale: Maximizing Your Return
1. Motherboard Specifications
| Chipset | CPU Support | Part Number | Warranty Status |
|---|---|---|---|
| AMD Promontory | Ryzen 5000 Series | 0WVH3V | Transferable |
2. Current Resale Values (Q3 2024)
| Configuration | Fully Functional | For Parts/Repair |
|---|---|---|
| Ryzen 5 5500U | $180-$250 | $90-$140 |
| Ryzen 7 5700U | $220-$300 | $120-$180 |
3. Pre-Sale Preparation
- BIOS Reset:
- Clear all passwords
- Disable Computrace
- Restore factory settings
- Documentation:
- Photograph service tags
- Include stress test results
- Show no physical damage
4. Target Buyer Markets
- Repair Shops:
- Seek donor boards
- Value partial functionality
- Refurbishers:
- Require complete service history
- Pay premium for tested boards
5. Safe Shipping Practices
- Use anti-static bag with foam padding
- Remove CMOS battery
- Include screw inventory list
6. Compatibility Notes
- Only works with Inspiron 15 3525 chassis
- Requires matching AMD Ryzen CPU
- Not compatible with Intel models
8. Selling Dell Inspiron 15 3525 Parts: Best Marketplaces & Strategies
1. Top Platforms for Consumer-Grade Components
| Platform | Best For | Fees | Inspiron Premium |
|---|---|---|---|
| SellLaptopBack | Individual components | 12% + $0.30 | +15% |
| SellLaptopBack | Quick bulk sales | Flat 15% | +10% |
| GSA Advantage | Government buyers | 5% GSA fee | +25% |
| E&I Cooperative | Educational institutions | 3-7% | +20% |
2. Selling to Institutions
- .gov Requirements:
- SAM.gov registration
- ITAR compliance documentation
- Dell service tag verification
- .edu Preferences:
- Complete asset tags
- 5+ unit lots preferred
- Campus-ready configurations
3. SEO-Optimized Listing Strategies
| Platform | Title Formula | Keywords |
|---|---|---|
| eBay | "Dell Inspiron 15 3525 [Part] [PN] Tested Working" | OEM, Pulled, Verified |
| SellLaptopBack | "Dell Inspiron 3525 [Condition] [Part] - Ryzen Ready" | Genuine, Grade A |
| .gov | "Dell Inspiron 15 3525 [NSN] [Part#] FSC XXXX" | GSA, TAA Compliant |
4. Best Selling Times
- Back-to-School: July-August
- Government FY End: September
- Tax Season: February-April
5. Common Value Killers
| Mistake | Solution | Value Impact |
|---|---|---|
| Missing service tags | Photograph before disassembly | 40% reduction |
| No test documentation | Include Dell ePSA results | 25% lower offers |
