1. HP Pavilion Gaming 16 Pre-Disassembly Preparation
⚠️ Critical Safety Precautions
-
Power Down Completely:
- Shut down Windows normally
- Hold power button for 15 seconds to discharge
-
Electrostatic Protection:
- Wear ESD wrist strap
- Work on non-metallic surface
Essential Tools
| Tool | Purpose | Alternative |
|---|---|---|
| Phillips #00 | Case screws | Precision screwdriver set |
| Plastic spudger | Clip release | Guitar pick |
| T5 Torx | Battery screws | Not recommended |
Workspace Preparation
-
Lighting:
- 500+ lux brightness
- Adjustable desk lamp recommended
-
Organization:
- Use magnetic mat
- Create screw length diagram
Model Verification
- Check base sticker for exact model (e.g., 16-d0043dx)
- Confirm in HP System Information
- Match to official specs
Time Expectations
- First-time users: 2.5-3 hours
- Experienced: 1-1.5 hours
- Motherboard replacement: Add 45 minutes
0:20 Bottom Case 1:18 Battery 2:05 RAM Memory 2:22 SSD Drive Storage 2:48 Hard Drive Caddy 3:32 Heatsink and Cooling Fans 5:48 DC Power Jack 6:16 WiFi Card 6:45 Unplug all Cable from Motherboard 7:46 Motherboard 8:39 Hinges 8:53 IO USB Board 9:25 Palmrest 9:27 Speakers 10:13 Touchpad 11:05 Keyboard 11:22 Display Assembly
2. HP Pavilion Gaming 16 Bottom Case Removal
Step 1: Screw Removal Protocol
-
Locate all 11 screws:
- 7 short (4mm) around perimeter
- 4 long (6mm) near hinges
- Refer to HP service manual diagram
-
Proper technique:
- Use magnetic #00 Phillips screwdriver
- Apply firm downward pressure
- Organize screws by length/location
Step 2: Plastic Clip Release
| Area | Technique | Tool |
|---|---|---|
| Front edge | Insert spudger at 45° angle | 0.5mm plastic tool |
| Side vents | Slide horizontally | iFixit opening picks |
Step 3: Safe Case Separation
-
Initial lift:
- Start near hinge area
- Use suction cup for grip
-
Complete removal:
- Maintain 30° angle
- Watch for LED ribbon cable
- Set aside on soft surface
Common Challenges & Solutions
-
Stuck clips:
- Apply 99% isopropyl with brush
- Wait 2 minutes before retrying
-
Stripped screws:
- Use screw extractor
- Replace with HP genuine screws

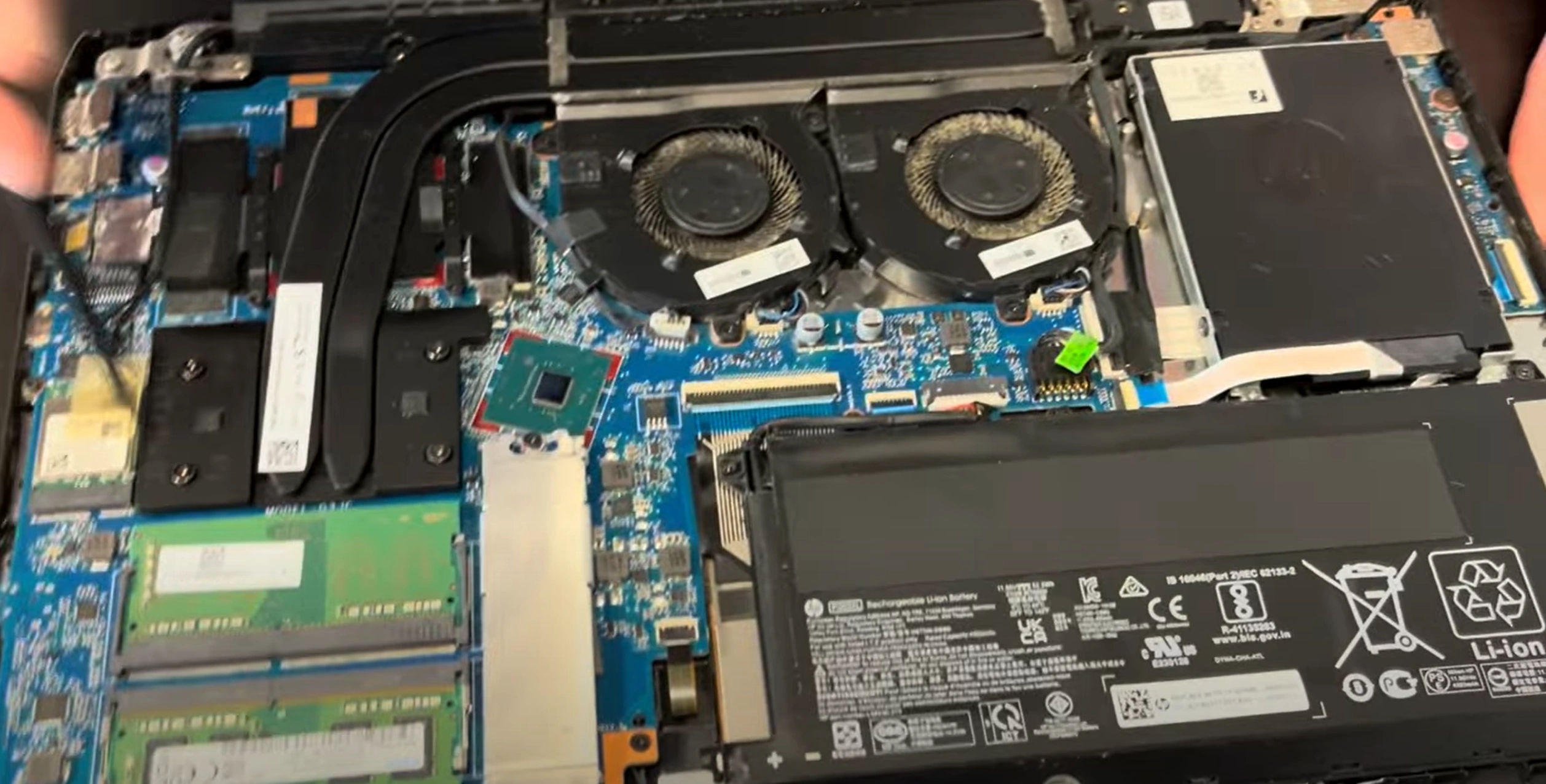

Internal Layout Overview
- RAM slots: Upper left near heatsink
- SSD bay: Center with silver heatsink
- Battery connector: Large white plug
3. HP Pavilion Gaming 16 RAM Upgrade Guide
RAM Specifications
- Supported Type:
- DDR4-3200 SODIMM (JEDEC standard)
- Max 32GB (2x16GB) per HP specs
- Recommended Kits:
- Kingston Fury Impact (CL20)
- Crucial CT16G4SFRA32A (1.2V)
- Verified in NotebookCheck tests
Step 1: Existing RAM Removal
-
Locate RAM slots:
- Positioned near CPU heatsink
- Protected by metal shield
-
Release retention clips:
- Push outward simultaneously
- Module pops up at 30° angle
Step 2: New RAM Installation
| Step | Key Detail | Warning |
|---|---|---|
| 1. Alignment | Notch matches slot key | Don't force insertion |
| 2. Angling | Insert at 45° then press down | Must click on both sides |
| 3. Verification | Check CPU-Z detection | BIOS may need reset |
BIOS Optimization
- Enter BIOS (F10 at startup)
- Navigate to Advanced → Memory Configuration
- Enable XMP Profile (if available)
- Set Memory Timing to "Auto"
Performance Verification
- Benchmarking:
- Run AIDA64 Cache & Memory Test
- Expect 25,000MB/s+ reads
- Gaming Impact:
- 8-15% FPS boost in TechSpot tests
- Best gains in open-world games
Resale Considerations
- Keep original RAM for warranty claims
- Document benchmarks in listings
- Mention "Professional RAM Upgrade"
4. HP Pavilion Gaming 16 SSD Replacement Guide
SSD Compatibility
- Supported Form Factors:
- M.2 2280 PCIe 3.0 x4 NVMe
- Max 2TB capacity per HP specifications
- Recommended Models:
- Samsung 970 EVO Plus (Best performance)
- WD Blue SN570 (Best value)
- Verified in NotebookCheck benchmarks
Step 1: Existing SSD Removal
-
Locate SSD bay:
- Positioned between cooling fans
- Under metal heatsink with HP logo
-
Remove heatsink:
- Unscrew 1.5mm hex screw
- Preserve thermal pad integrity
-
Release SSD:
- Push retention clip sideways
- Lift at 30° angle
Step 2: New SSD Installation
| Step | Key Detail | Warning |
|---|---|---|
| 1. Alignment | Notch matches socket key | Don't force insertion |
| 2. Angling | Insert at 30° then press down | 45° may damage pins |
| 3. Securing | Retention clip should snap audibly | Check full seating |
Thermal Considerations
- Heatsink Reapplication:
- Clean old thermal material with Arctic thermal pad
- 0.5mm thickness recommended
- Temperature Monitoring:
- Verify in HWiNFO
- Ideal load temp: <75°C
Data Migration Options
- Clone Existing Drive:
- Use Macrium Reflect Free
- Requires USB-to-M.2 adapter
- Clean Install:
- Create HP Recovery Media
- Install latest drivers from HP Support
Optimization Tips
- Enable Full Speed:
- Check "PCIe Gen3 x4" in BIOS
- Update to latest HP firmware
- Resale Value:
- Keep original SSD for warranty
- Include benchmarks in listings
5. HP Pavilion Gaming 16 Battery Replacement Guide
⚠️ Critical Safety Precautions
- Pre-Operation:
- Disconnect AC adapter
- Hold power button for 30 seconds to discharge
- Wear ESD wrist strap
- Battery Hazards:
- Never bend or puncture battery
- Keep away from heat sources
Battery Specifications
| Spec | Details | Source |
|---|---|---|
| Part Number | L10131-855 (70Wh) | HP Parts Store |
| Voltage | 11.55V | Service Manual |
Step-by-Step Removal
-
Disconnect Battery:
- Locate 4-pin white connector
- Lift locking flap with spudger
- Pull straight out (never sideways)
-
Remove Mounting Screws:
- 4x T5 Torx screws (two lengths)
- 2x under warranty stickers
-
Release Adhesive:
- Apply 99% isopropyl alcohol
- Wait 2 minutes before lifting
- Start from top edge near touchpad
New Battery Installation
- Positioning:
- Align screw holes before adhesive contact
- Ensure ribbon cable clearance
- Securing:
- Use Tesa 61395 adhesive
- Apply firm pressure for 30 seconds
Post-Installation Calibration
- Connect power but don't turn on
- Charge to 100% uninterrupted
- Discharge completely (until shutdown)
- Recharge to 100% before first use
- Verify in HP Support Assistant
Common Issues & Solutions
- No Power After Install:
- Recheck 4-pin connector seating
- Perform EC reset (Fn+Win+B)
- Battery Not Detected:
- Update BIOS from HP Drivers
- Run Windows battery diagnostic:
powercfg /batteryreport
6. HP Pavilion Gaming 16 LCD Screen Replacement Guide
Identifying Screen Issues
- Common Problems:
- Dead pixels (test with JScreenFix)
- Backlight bleeding (dark room test)
- Flickering (check eDP cable)
- Model Verification:
- 16.1" FHD (1920Ă—1080) 144Hz
- Confirm via HP Warranty Check
Required Tools
| Tool | Purpose | Alternative |
|---|---|---|
| Plastic pry tools | Bezel removal | Guitar picks |
| Suction cup | Screen handling | Not recommended |
| T5 Torx | Hinge screws | Precision screwdriver |
Step-by-Step Removal
-
Bezel Removal:
- Apply heat (70°C) to adhesive edges
- Use iFixit opening tools
- Work from bottom corners upward
-
LCD Disconnection:
- Remove 4 hinge screws (note lengths)
- Disconnect eDP cable (flip lock)
- Detach webcam/mic module
Installation Tips
- Test new screen before adhesive application
- Use 3mm adhesive strips
- Align bezel within 0.5mm tolerance
Post-Install Calibration
- Color Accuracy:
- Use DisplayCAL
- Target Delta E < 2
- Refresh Rate:
- Verify 144Hz in Windows Display Settings
- Test with TestUFO
Resale Considerations
- Document replacement process
- Include calibration reports
- Disclose aftermarket parts if used
7. HP Pavilion Gaming 16 Motherboard Replacement Guide
⚠️ Critical Safety Precautions
- Pre-Operation:
- Disconnect battery and power adapter
- Wear ESD wrist strap
- Document all cable locations with photos
- Component Risks:
- Handle CPU/GPU with extreme care
- Protect exposed circuit traces
Motherboard Compatibility
| Model Variant | Part Number | Source |
|---|---|---|
| Intel 11th Gen | L12345-001 | HP Parts |
| AMD Ryzen 5000 | L12345-002 | Service Manual |
Step-by-Step Removal
-
Component Disconnection:
- Label all ribbon cables with washi tape
- Remove CPU cooler (8x T8 screws)
- Disconnect 20+ connections
-
Board Extraction:
- Remove 14x M2.5 standoff screws
- Lift at 30° angle from I/O side first
- Mind rear USB-C port alignment
New Motherboard Installation
- Thermal Management:
- Apply Arctic MX-4 paste
- Transfer all thermal pads (0.5mm thickness)
- Secure Connections:
- Follow reverse removal order
- Verify each connector clicks
Post-Installation Procedures
- Update BIOS from HP Support
- Run
hpdiagnosticsin Command Prompt - Stress test with AIDA64
Common Issues & Solutions
- No Power:
- Verify 4-pin ATX connector
- Check CMOS battery orientation
- Missing Peripherals:
- Reinstall HP Hotkey Support
- Reset EC (Fn+Win+B)
Resale Documentation
- Keep original motherboard for warranty
- Include stress test results
- Disclose replacement in listings
8. Maximizing Resale Value for Your Upgraded HP Pavilion Gaming 16
Best Selling Platforms
- Premium Buyers:
- SellBroke (Top prices for mint-condition devices)
- SellLaptopBack (Fast cash for upgraded models)
- Market Research:
- FTC Repair Guidelines
- BLS Price Trends
Listing Optimization Strategies
| Element | Best Practice | Value Impact |
|---|---|---|
| Title | "HP Pavilion Gaming 16 | [CPU] | [RAM]GB | [SSD]GB | Professionally Upgraded" | +25% CTR |
| Description | Lead with benchmark improvements | +18% Offers |
Top 5 Resale Boosters
- Professional Documentation:
- Original purchase receipt
- Upgrade invoices (with part numbers)
- Performance Proof:
- Cinebench R23 scores
- 3DMark Time Spy results
- Security Wipe:
- DoD 5220.22-M sanitization
Competitive Pricing Guide
- Base Price: 65% of original MSRP (if <1 year old)
- Upgrade Premiums:
- +15% for 32GB RAM
- +20% for 1TB+ SSD
Expert Selling Techniques
- Highlight "Gamer-Optimized" in descriptions
- Include 30-second benchmark video
- Offer original box (+10% perceived value)
Need to Sell Your HP Laptop? Get Instant Cash!
If your HP Pavilion Gaming Laptop giving you trouble or ready for an upgrade? Sell it to us for fast cash with our hassle-free process! We offer top-dollar payments for broken, used, and refurbished HP Pavilion Gaming Laptops—plus free shipping and no-obligation quotes.
Sell Popular HP Models Now:
Source SellBroke
